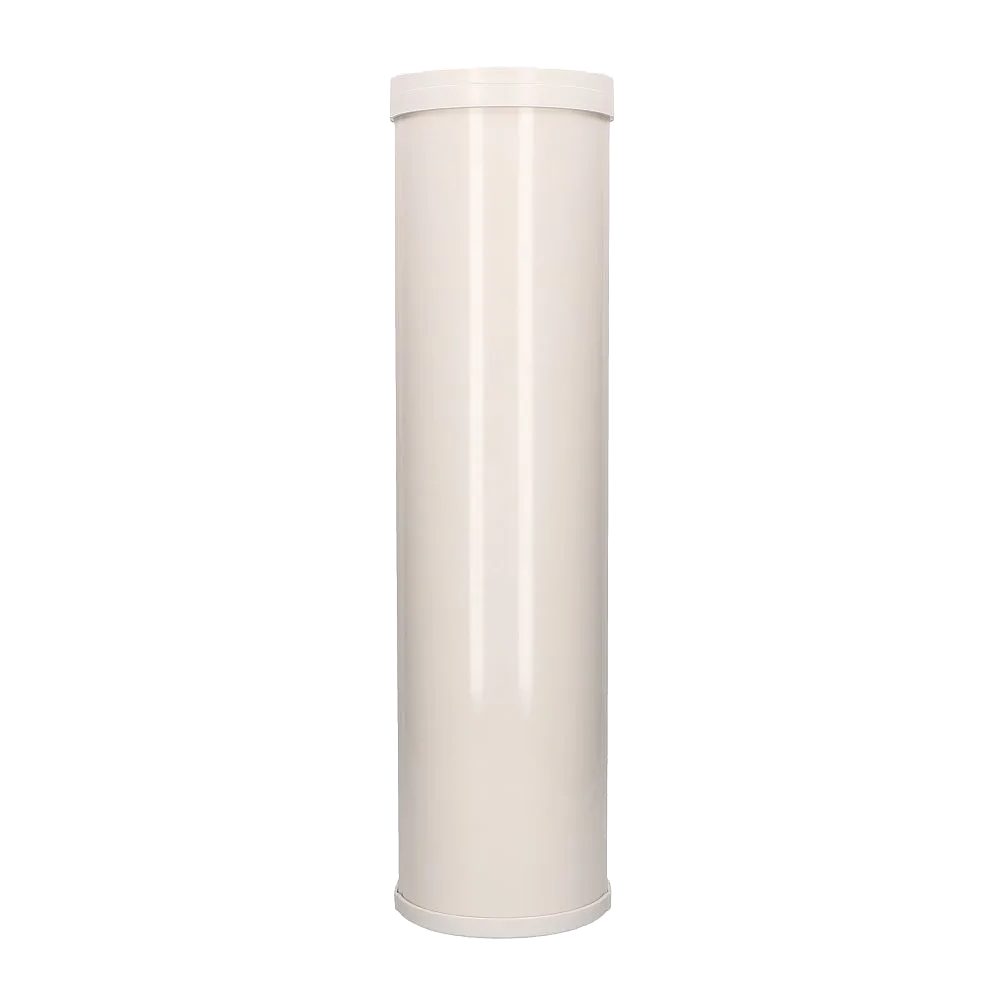

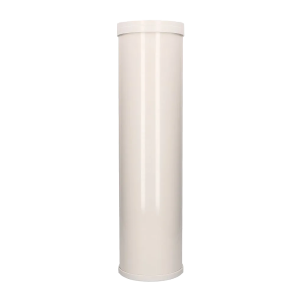

ePMP 5GHz 90/120 degree Sector Antenna with Mounting Kit


ePMP 5GHz 90/120 degree Sector Antenna with Mounting Kit

Cambium Networks
C050900D021B

Key Advantages:

  • Frequency Reuse: Designed for ABAB channel reuse (two channels covering four sectors), the antenna front-to-back ratio is 35 dB, including a wide aperture at the rear.
  • Channel Flexibility: Fixed gain from 4.9 to 6.0 GHz allows the network operator to select a channel anywhere in the band and achieve predicted performance.
  • Consistent Transmission Range: Excellent antenna capabilities allow for wide geographic coverage within a given sector.
  • Designed for Installation: Small compact design, integrated ePMP radio mount, GPS antenna integration.
  • Predictable Performance: The sector antenna is integrated with the LINKPlanner tool from Cambium Networks.
Hurry! only 1089 items left in stock.
Please log in to view exclusive member discounts!
$255.98
Quantity

In stock
Add to Compare
Add to Wishlist
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

ePMP 5GHz 90/120 degree sector antenna

Cambium Networks has deployed over five million radios worldwide, achieving unmatched scalability. Building on this vast experience, Cambium Networks has developed an antenna solution that enables network operators to increase the spectral efficiency and scale of their ePMP networks. Wireless service providers deploying 5 GHz networks will find this sector antenna at 90° or 120° particularly suited to high-density networks that require frequency reuse and wideband spectrum coverage. The package includes a complete antenna mast mounting kit.

: C050900D021B
: 1089 Items
Hurry! only 1089 items left in stock.

Data sheet

Frequency Range
4.9 GHz to 5.97 GHz
Polarization
Horizontal and Vertical
Gain
18 dBi
3 dB Beamwidth – Azimuth
90 degrees
6 dB Beamwidth – Azimuth
120 degrees
3 dB Beamwidth – Elevation
6 degrees
Electrical Downtilt
-2 degrees
Port-to-Port Insulation
-30 dB
Front-to-Back Ratio
35 dB
Maximum Input Power
5 W
Input Impedance
50 ohms
Mounting Connectors
2 x RP SMA
Mounting Hardware
Included for mounting to mast diameters 2" to 4" (5 cm to 10 cm) | -10 to +5 degree tilt | Hardware included to connect ePMP access poin to back of antenna body
Physical Dimensions
Antenna Body: 23.4" (H) x 6.2" (W) x 4.3" (D) (594 mm x 157 mm x 110 mm) w/ w/ ePMP 1000 Access Point: 23.4" (W) 6.2" (W) x 5.9" (G) (594mm x 157mm x 150mm)
Weight
Antenna Weight: 8.8 lbs. (4.0 kg) w/ ePMP 1000 Access Point and Mounting Brackets: 14.6 lbs. (6.6 kg)
Environmental
IP 65
Radome Material (Cover)
UV Protected ABS
Operating Temperature
-40ºC to 60ºC (-40ºF to 140ºF)

Download

ePMP Sector Antenna

Specification Sheet

Download (580.01KB)
