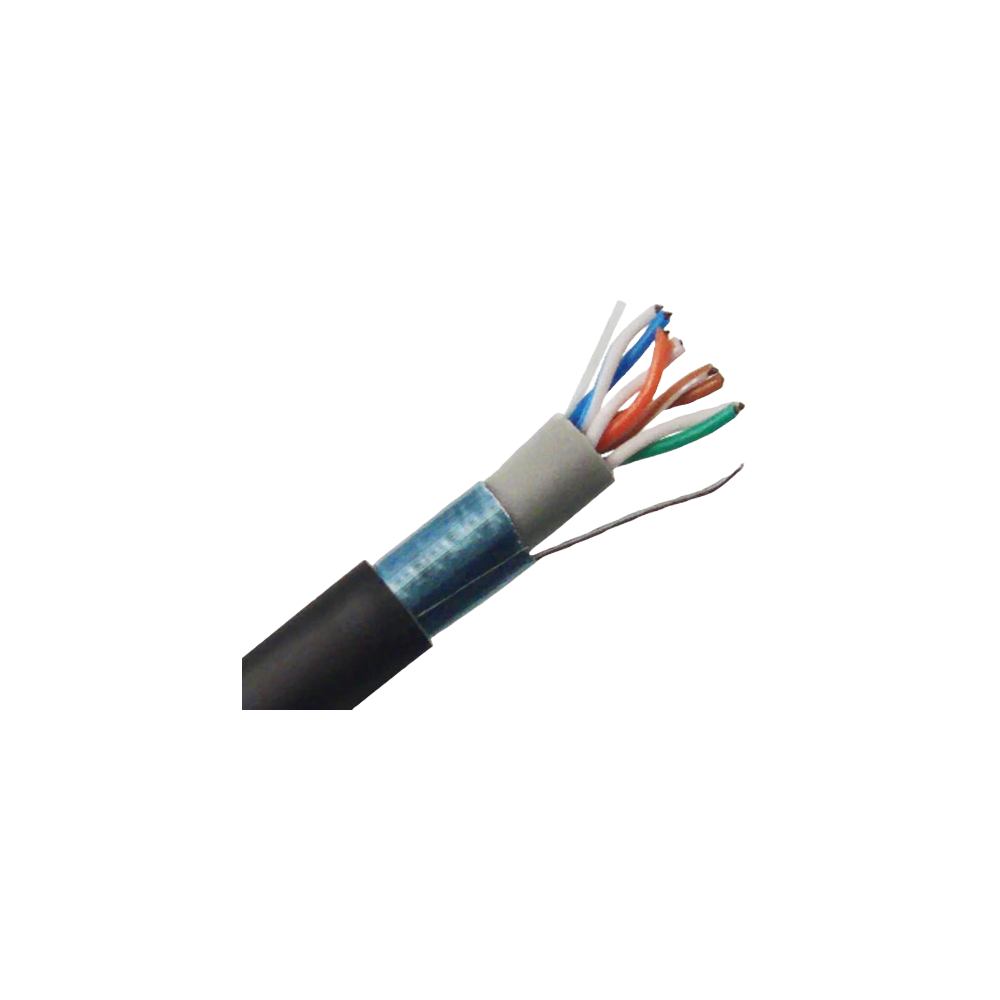

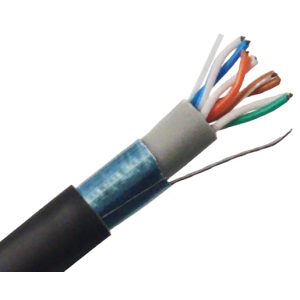

C5CMXT-416BK, High Quality UV-rated Shielded CAT5E Direct Burial Twisted Pair Cable, Black

C5CMXT-416BK, High Quality UV-rated Shielded CAT5E Direct Burial Twisted Pair Cable, Black

Winncom Technologies
WRCCAT5E-UVS-BLK-DB

Promotional Sale price while supplies last

Cable Features

  • Tested to 350MHz.
  • Meets or Exceeds CAT5E TIA568 C.2 Standards.
  • Cable is Marked in Descending Order so You Always Know How Much Cable is Left.
  • Extra Headroom Provides Room for Growth.
  • Low Attenuation and Power-Sum Crosstalk.
Cable Length [ft] : 1000
Hurry! only 6 items left in stock.
Please log in to view exclusive member discounts!
$310.00
Quantity

Add to Compare
Add to Wishlist
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Category 5E Outdoor Direct Burial AL Foil Shielded F/UTP 24 AWG 4 Pair 8 Solid Bare Copper Conductors, Water Blocking Layer, Black UV CMX PVC Jacket 1000FT

Applications

  • 10/100/1000Base-T
  • 100Base-VG
  • 155 Mbps and 622-Mpbs ATM
  • Other high-performance applications
  • Outside Plant
  • Direct Burial
  • Aerial

Compliance

  • ISO/IEC 11801
  • TIA/EIA-568-C.2 Category 5e
  • ANSI/ICEA S-90-661 Category 5e
  • NEMA WC63.1 Category 5e
  • RoHS Compliance for the Requirement of European Union Issued Directive 2002/95/EC

Construction Facts

  • This Outdoor Direct Burial Cable has HDPE Insulation.
  • AL Foil Shielding is Used to Eliminate Interference in Noisy Environments.
  • A Water Blocking Layer is included for Added Moisture Protection.
  • Longitudinal Rip Cord for Easy Jacket Opening.

Technical Diagram

CAT5E Technical Diagram Bulk Shielded Direct Burial Cable

: WRCCAT5E-UVS-BLK-DB
: 6 Items
Hurry! only 6 items left in stock.

Data sheet

Operating Temperature
-40ºC to 60ºC (-40ºF to 140ºF)
Conductor Size
24 AWG
Conductor Material
Solid Bare Copper
Insulation Material
High Density Polyethylene (HDPE)
Insulation Diameter
0.88 ± 0.03mm
Number of Conductors
8 Conductors
Number of Pairs
4 Pairs
Outer Jacket Rip Cord
Yes
Outer Shield Material
AL Foil/Mylar
Drain Wire
Tinned Copper 0.45mm
Outer Jacket Material
LSZH (meets IEC60332-1)
Outer Jacket Diameter
6.6mm ± 0.5mm
Storage Temperature
-30°C to 60°C (-22°F to 141°F)
Installation Temperature
-40ºC to 60ºC (-40ºF to 140ºF)

Download

CAT5E 350MHz Cable

Specification Sheet

Download (594.42KB)

Use collapsible tabs for more detailed information that will help customers make a purchasing decision.

Ex: Shipping and return policies, size guides, and other common questions.

  • Paste the label on a flat surface on the package
  • Make sure that both 1D and 2D barcodes are clearly visible
  • Ensure that the label is smooth and isn’t creased or wrinkled
  • Check for any tears, dents, holes or scratches
  • Pack your product tightly, with the right size packaging
  • Ensure both barcodes are on a flat surface of the package
